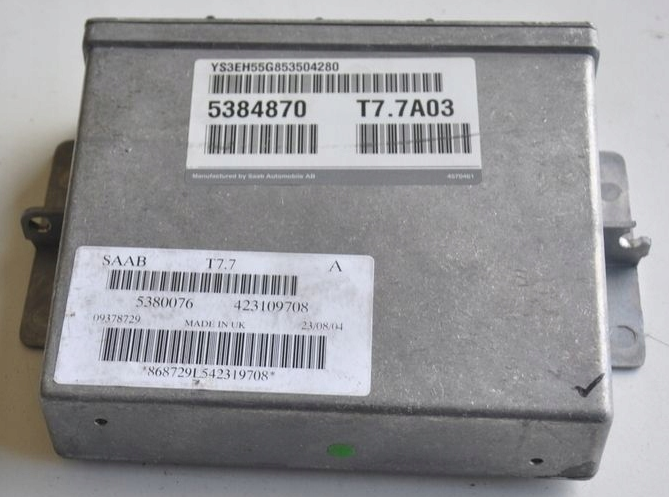

TRONIC 7
USED IN
- 1st Generation Saab 9-3 1998+ Viggen
- 1st Generation Saab 9-3 2000 to 2002
- 1st Generation Saab 9-5 1998 to 2010 4Cyl
PROFESSIONAL TOOLS
-> Many professional tools cover these ecus such as Alientech Kess and CMDFlash and can be edited with WinOLS
PUBLIC TOOLS
Trionic CAN Flasher
The Trionic CAN Flasher is an Open Source tool used to read and write software in Trionic5, Trionic 7 and Trionic 8 based ECU’s. It can also read software out of Motronic 9.6 based ECU’s and write calibration.
The tool can also be used to modify parameters in the ECU, such as SAI, Convertible and High Output.
The Trionic CAN Flasher currently supports the following interfaces:
- Lawicel CANUSB
- CombiAdapter
- OBDLink SX (Not supported for ME9.6)
- Just4Tronic
- Kvaser HS
- J2534 (Beta)
A quick guide to the flasher can be found here. But, please read the documentation that comes with the flasher.
Supported ECU
- Tronic 5
- Tronic 7
- Tronic 8
- ME9.6
Bdmtool - > FLASHING
The Bdmtool can be used to read and write the flash of Trionic 5, 7 and 8 ECUs.
The Bdmtool currently supports the following interfaces:
- CombiAdapter
- Usbbdm
- Usbbdm mk2
T7Suite
The T7Suite is an Open Source tool used to tune Trionic 7 based ECU’s.
With the T7Suite it is possible to tune how the software behaves to increase the performance of the car and adjust the software for hardware modifications, such a high performance injectors.
The T7Suite also supports real-time view and can be used to predict the behavior of the tune through it’s Air-mass viewer.
System Requirements
The T7Suite currently supports the following interfaces:
- Lawicel CANUSB
- CombiAdapter
- OBDLink SX
- Just4Tronic
- Kvaser HS
- J2534 (Beta)
Download zip and extract T7Suite.msi and setup.exe. Run the bootstrap file setup.exe.
Required frameworks will be verified and downloaded if need by the bootstrap file.
Download and install the T7Extras.msi package to get binary firmware files.
Logworks can be downloaded from
