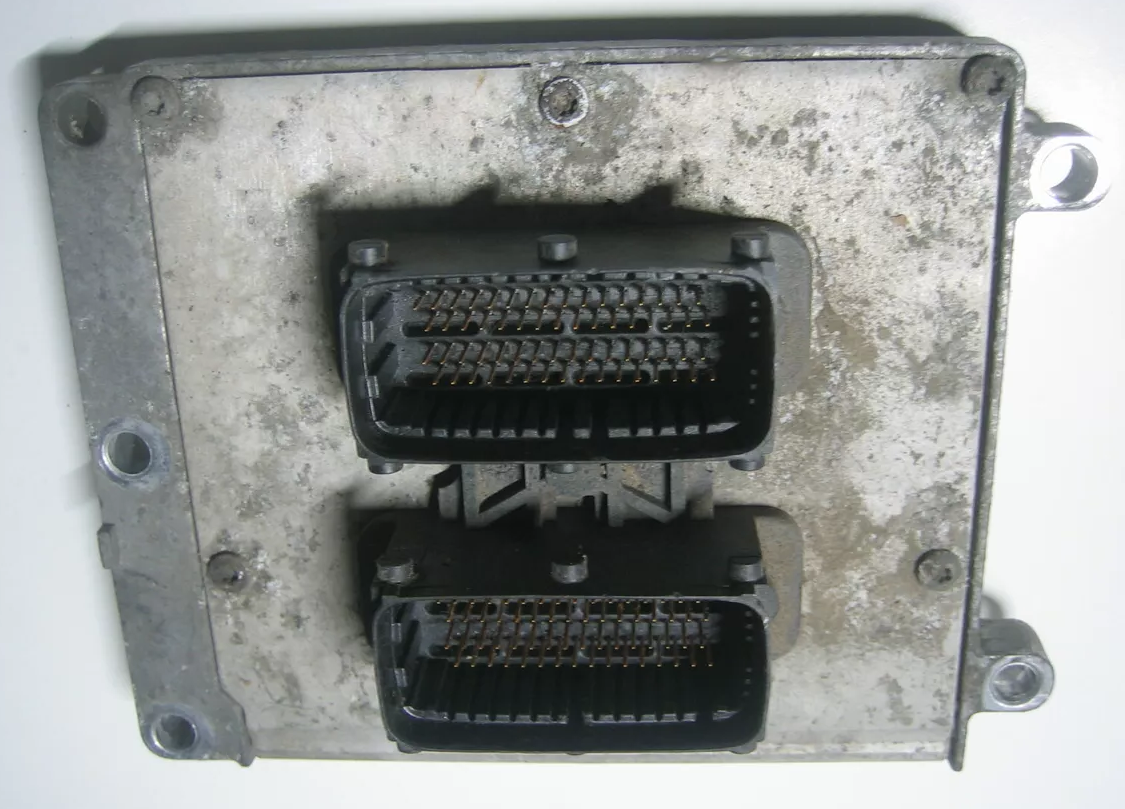

TRONIC 8
The Trionic 8 is an advanced engine management system in the Trionic series, created by Saab Automobile. It is used in both Saab 9-3 and Opel Vectra vehicles, and is available with 150, 175 and 210 horsepower engines.
USED IN
- 2nd Generation Saab 9-3 2003 to 2011 4 Clylinder
PROFESSIONAL TOOLS
-> Many professional tools cover these ecus such as Alientech Kess and CMDFlash and can be edited with WinOLS
PUBLIC TOOLS
Trionic CAN Flasher
The Trionic CAN Flasher is an Open Source tool used to read and write software in Trionic5, Trionic 7 and Trionic 8 based ECU’s. It can also read software out of Motronic 9.6 based ECU’s and write calibration.
The tool can also be used to modify parameters in the ECU, such as SAI, Convertible and High Output.
The Trionic CAN Flasher currently supports the following interfaces:
- Lawicel CANUSB
- CombiAdapter
- OBDLink SX (Not supported for ME9.6)
- Just4Tronic
- Kvaser HS
- J2534 (Beta)
A quick guide to the flasher can be found here. But, please read the documentation that comes with the flasher.
Supported ECU
- Tronic 5
- Tronic 7
- Tronic 8
- ME9.6
Bdmtool - > FLASHING
The Bdmtool can be used to read and write the flash of Trionic 5, 7 and 8 ECUs.
The Bdmtool currently supports the following interfaces:
- CombiAdapter
- Usbbdm
- Usbbdm mk2
T8Suite
The T8Suite is an Open Source tool used to tune Trionic 8 based ECU’s.
With the T8Suite it is possible to tune how the software behaves to increase the performance of the car and adjust the software for hardware modifications, such a high performance injectors.
The T8Suite also supports real-time view and can be used to predict the behavior of the tune through it’s Air-mass viewer.
System Requirements
A PC running Windows XP, Windows Vista, Windows 7, Windows 8.1 or Windows 10.
Microsoft .NET 4.0
Microsoft Visual C++ 2010 Redistributable Package (x86)
Administrator rights
The T8Suite currently supports the following interfaces:
- Lawicel CANUSB
- CombiAdapter
- OBDLink SX
- Just4Tronic
- Kvaser HS
- J2534 (Beta)
Download zip and extract T8Suite.msi and setup.exe. Run the bootstrap file setup.exe.
Required frameworks will be verified and downloaded if need by the bootstrap file.
Download and install the T8Extras.msi package to get binary firmware files.
Logworks can be downloaded from http://www.innovatemotorsports.com/
